In the competitive educational toy market, product differentiation is vital. Off-the-shelf stock items often face intense price competition across retail platforms like Amazon, Walmart, and specialty store chains. To build long-term brand value, distributors and toy brand owners invest in custom OEM (Original Equipment Manufacturing) and ODM (Original Design Manufacturing) solutions.
Bringing a custom educational toy to market requires balancing creative concept design, structural engineering, safety compliance, and cost parameters. At Lione Toys, we guide global buyers through every stage of this process—from initial sketch concepts to final, certified retail products.
+-----------------------------------------------------------------------------------+
| LIONE TOYS OEM/ODM WORKFLOW PIPELINE |
| |
| [ PHASE 1 ] Engineering CAD Design & 3D Prototyping |
| │ |
| ▼ |
| [ PHASE 2 ] Precision Tooling & Steel Mold Fabrication |
| │ |
| ▼ |
| [ PHASE 3 ] Pre-Production Testing & Certification Compliance |
| │ |
| ▼ |
| [ PHASE 4 ] Mass Production, Automated Assembly & Inline QC |
| │ |
| ▼ |
| [ PHASE 5 ] Custom Packaging, Warehousing & Export Logistics |
+-----------------------------------------------------------------------------------+
1. Phase 1: Product Design, Engineering & 3D Prototyping
Every successful OEM project starts with detailed technical planning. Whether you present a rough concept sketch or complete 3D mechanical models, our engineering team evaluates part geometry, wall thickness tolerances, and material performance.
[ Client Concept / Sketch ]
│
▼
[ 3D CAD Modeling (STEP/IGS) ] ──► Mold Flow Analysis
│
▼
[ Functional SLA/SLS Prototyping ] ──► Physical Hand Sample Inspection

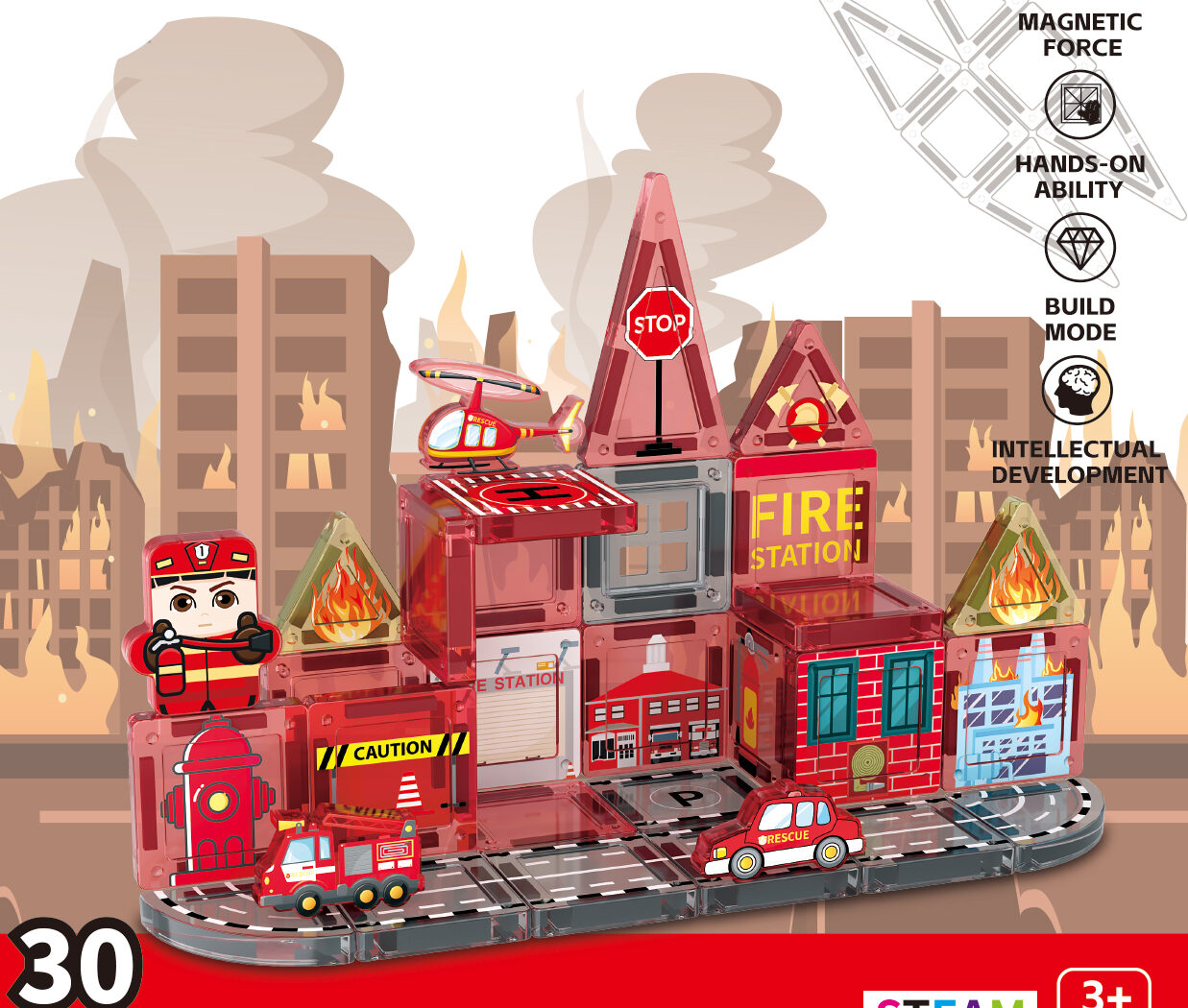

Engineering Considerations for Magnetic Tiles
- Magnet Pocket Geometry: Internal magnet pockets are engineered to eliminate internal rattling while ensuring exact magnetic alignment and attraction force.
- Internal Ribbing: Internal cross-ribbing prevents plastic shrinkage during injection molding and adds flexural strength under load.
Board Game Component Engineering
- Token & Pawn Mold Drafting: Custom plastic game tokens are designed with precise draft angles to allow clean ejection from injection molds.
- Card & Board Specifications: Paper weights, card coatings, and chipboard densities are selected to withstand repeated handling.
2. Phase 2: Steel Mold Engineering & Fabrication
Once 3D prototypes are approved, engineering shifts to steel mold manufacturing. Tooling quality directly dictates part surface finish, joint tolerances, and production cycle efficiency.
+-----------------------------------------------------------------------+
| STEEL MOLD FABRICATION METRICS |
+-----------------------------------+-----------------------------------+
| Steel Grade | NAK80 / P20 High-Hardness Steel |
+-----------------------------------+-----------------------------------+
| Mold Life Expectancy | 500,000+ Shot Cycles |
+-----------------------------------+-----------------------------------+
| Cavity Configuration | Multi-Cavity (High Output) |
+-----------------------------------+-----------------------------------+
| Surface Finish | High-Gloss Polish / Texture Etch |
+-----------------------------------+-----------------------------------+
During mold cutting, our engineers perform Mold Flow Analyses to identify potential air traps, weld lines, or sink marks. Resolving these issues during tool design ensures consistent part quality across multi-thousand unit production runs.
3. Phase 3: Pre-Production Sampling & Safety Certification
Before mass manufacturing begins, golden pre-production samples are produced and submitted for physical, chemical, and functional evaluation.
+----------------------------------+
| PRE-PRODUCTION GOLDEN SAMPLE |
+-----------------+----------------+
|
+----------------------------+----------------------------+
| | |
[ PHYSICAL TESTING ] [ CHEMICAL ANALYSIS ] [ PACKAGING DROP AUDITS ]
• Drop-Impact Testing • Heavy Metals (EN71-3) • ISTA-1A Transit Test
• Magnet Pull Force • Phthalate Screen • Box Compression
• Tension / Torque • CPSIA Lead Limits • Retail Display Check
- Lab Submission: Golden samples are sent to accredited testing laboratories (SGS, TÜV, Intertek) to secure official safety reports (ASTM F963, EN71, CPC) required for customs clearance.
- Client Verification: The client receives physical golden samples to confirm color accuracy, magnetic force, surface finish, and print quality.
4. Phase 4: Mass Production & Automated Assembly
Following golden sample approval, mass manufacturing commences. Lione Toys operates dedicated injection workshops, ultrasonic welding stations, and assembly lines.
Raw Resin Loading ──► Injection Molding ──► Ultrasonic Magnet Sealing ──► Structural Inspection
│
Shrink-Wrapping ◄── Packaging Kitting ◄── Automated Weighing Station ◄──────┘
- Automated Injection: Virgin ABS resin is dried, mixed with masterbatch pigments, and injected under controlled pressure and temperature conditions.
- Ultrasonic Magnet Sealing: Magnets are precisely positioned into housing pockets before high-frequency ultrasonic welding fuses the shells shut.
- Inline Quality Checks: Operators test joint strength and inspect visual clarity on a regular sampling schedule.
5. Phase 5: Retail Packaging & Custom Branding
Market impact depends heavily on structural and visual packaging execution. We support custom packaging designs tailored to your distribution channels:
+-----------------------------------------------------------------------------+
| CUSTOM PACKAGING OPTIONS |
+-------------------------+-------------------------+-------------------------+
| Window Gift Boxes | Rigid Setup Boxes | Storage Plastic Tubs |
| • Clear PET Windows | • Heavyweight Chipboard | • Stackable Design |
| • Corrugated Inserts | • Magnetic Closures | • Molded Handles |
| • Gloss/Matt Finish | • Premium Linen Texture | • In-Mold Label Printing|
+-------------------------+-------------------------+-------------------------+
- Amazon FBA Ready: Custom barcodes (FNSKU), master carton labeling, Suffocation Warning polybags, and drop-tested shipping cartons.
- Retail Store Ready: Full-color CMYK printing, spot UV highlights, foil stamping, and custom internal tray organizers.
6. Frequently Asked Questions (FAQ)
Q: Who retains the intellectual property (IP) and custom molds for OEM projects?
A: The client retains 100% ownership of all custom molds, CAD designs, and artwork created for their project. Molds are held at our factory under strict Non-Disclosure Agreements (NDAs) and are never used for third-party production.
Q: What is the typical cost for custom mold creation?
A: Tooling costs depend on part dimensions and cavity counts. Simple single-part molds start around $1,500–$3,000, while complex multi-part magnetic building sets or detailed board game components range from $5,000 to $15,000+.
Q: Can Lione Toys assist with artwork and graphic layout for board games?
A: Yes. Our internal design team can adapt your raw illustrations and game concepts into production-ready die-line templates for card decks, game boards, spinners, and packaging.
Q: How are small game accessories packaged to prevent missing pieces?
A: Small components—such as dice, tokens, or magnetic accessories—are heat-sealed in polybags or secured within custom thermoformed inner trays to ensure complete box contents upon delivery.
Turn Your Product Concepts into Reality
Developing a successful custom educational toy line requires a structured manufacturing pipeline. Lione Toys provides the engineering depth, manufacturing scale, and quality systems needed to launch your next product line safely and efficiently.
👉 Ready to discuss your custom OEM/ODM project? Contact our engineering team at www.lionetoys.com.
